DTF solution · Direct-to-Film

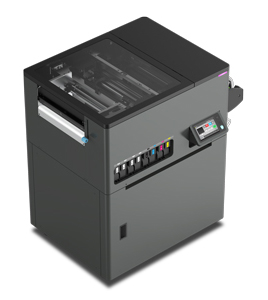

XTF D430
“DTF Cube”
Professional DTF printing. Minimal space. Maximum impact – on a footprint of under 2 m².
1200
dpi resolution
407
mm printable width
34
sheets per hour
<2 m²
footprint
Precision in every print.
RICOH piezo printheads and specially formulated high-viscosity DTF inks deliver razor-sharp images in CMYK + white at 1,200 × 1,200 dpi with variable drop size – from T-shirts to bags to cushions.
Built to keep production moving.
Automatic roll feeding with inline cutting, a 7-inch colour touchscreen, LED status indicators and a dual-carriage design reduce manual work and maximise throughput.
Inside XTF D430
A look
inside.
- BuildEvery component in its place.
- Film feedPrecise transport, roll by roll.
- Media pathFrom printhead to powder application.
- CuringEven heat for lasting adhesion.
In detail
Engineered for uptime.
Automatic white-head maintenance
Patented automatic cleaning prevents nozzle clogging – stable quality with far less maintenance.
4-zone heating
A heated table and even pre- and post-drying of every ink layer for clean, detailed results.
Dual carriage & inline cutter
Two carriages with four printheads each increase throughput; the cutter trims sheets before the powder shaker.
ECO PASSPORT inks
OEKO-TEX certified, water-based and PVC-free – brilliant colour and high wash resistance.
40 cm print width
Up to 97 cm print length roll-to-roll – ideal for 40 × 50 cm or A3 workflows.
Intuitive operation
7-inch touchscreen, clear light signals and QR codes for an efficient workflow.
Ideal for
Who it’s made for.
- Newcomers to DTF and DTG users adding a second technology
- Small print service providers, e-commerce and promotional product finishers
- Creative studios with limited space and high quality standards
- Sites with narrow doors and wall openings
Competence Centre
See it.
Touch it.
Print it.
Bring your own textiles and designs – our application specialists print with you on every system and work out with you what pays off.
